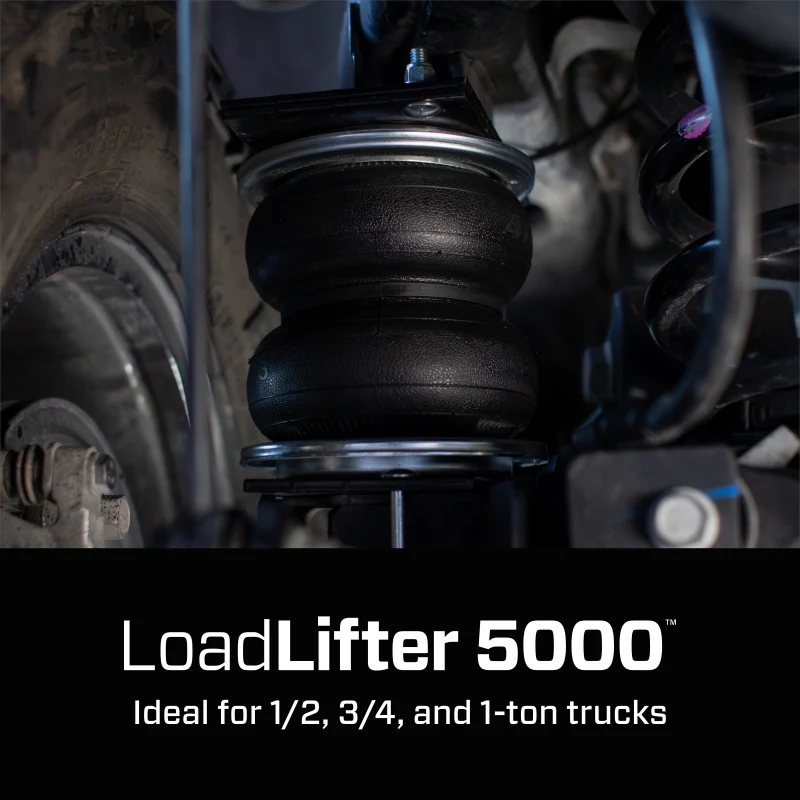

2022+ Tundra Air Lift LoadLifter 5000 Rear Air Spring Kit
Rear air spring kit for the 2022+ Toyota Tundra (3rd Gen). Provides up to 5,000 lbs of load-leveling capacity for towing, hauling, and constant rear loads. Bolt-on installation with no frame drilling required.
Important Fitment Information:
- Does NOT fit Tundras equipped with factory air suspension. Most 2022+ Capstone and 1794 Edition trims ship with factory air ride — verify your truck before ordering.
- Does NOT fit Tundras equipped with 5th-wheel hitches.
- Works with lift blocks without a spacer. If running a lifted leaf spring or add-a-leaf, an airbag spacer will likely be required.
Features
- 5,000 lb load-leveling capacity
- Air springs fully adjustable from 5–100 PSI for precise control
- 2-ply fabric construction with ultra-high-strength nylon composite end caps
- Roll plates protect the air springs from frame contact
- Frame drilling: No
- Limited Lifetime Warranty + 60-Day Ride Satisfaction Guarantee
Kit Contents (Part #57383)

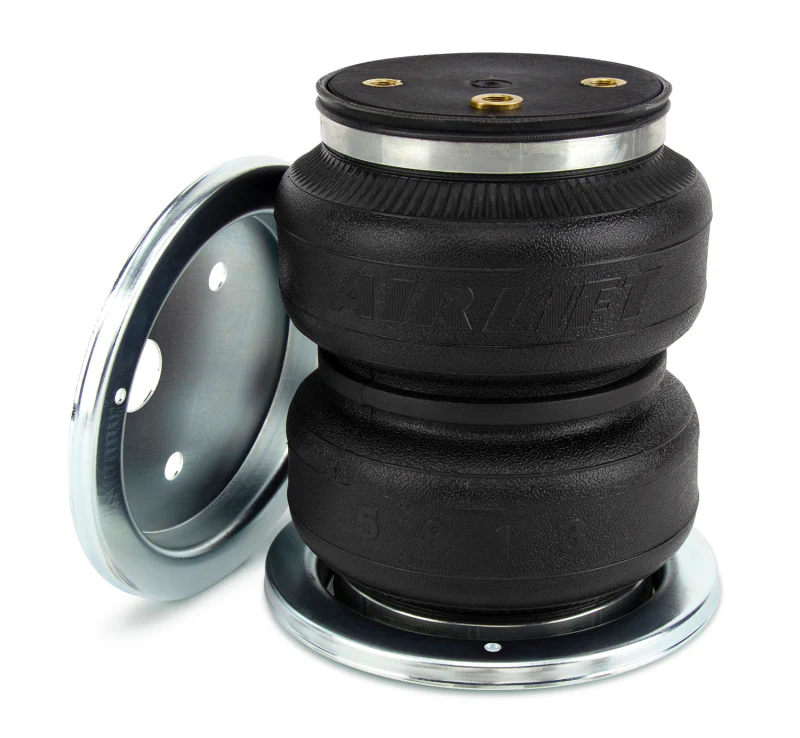

- Two air springs
- Mounting brackets, air line, and fittings
- All required mounting hardware
- Schrader inflation valves (manual inflation — on-board compressor sold separately)
- Installation instructions
Replacement air spring: Air Lift PN 50383
Specifications
| Part Number | 57383 |
| Weight | 32.675 lb |
| Width | 14.125 in |
| Depth | 9.25 in |
| Height | 10.75 in |
| Replacement Air Spring | 50383 |
| Drilling Required | No |
| Application Type | Rear Kit |
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2022-2026 | Toyota | Tundra | SR |
| 2022-2026 | Toyota | Tundra | SR5 |
| 2022-2026 | Toyota | Tundra | Limited |
| 2022-2026 | Toyota | Tundra | Platinum |
| 2022-2026 | Toyota | Tundra | TRD Pro |
Installation
Download the manufacturer install guide: Air Lift Installation Manual (PDF).
