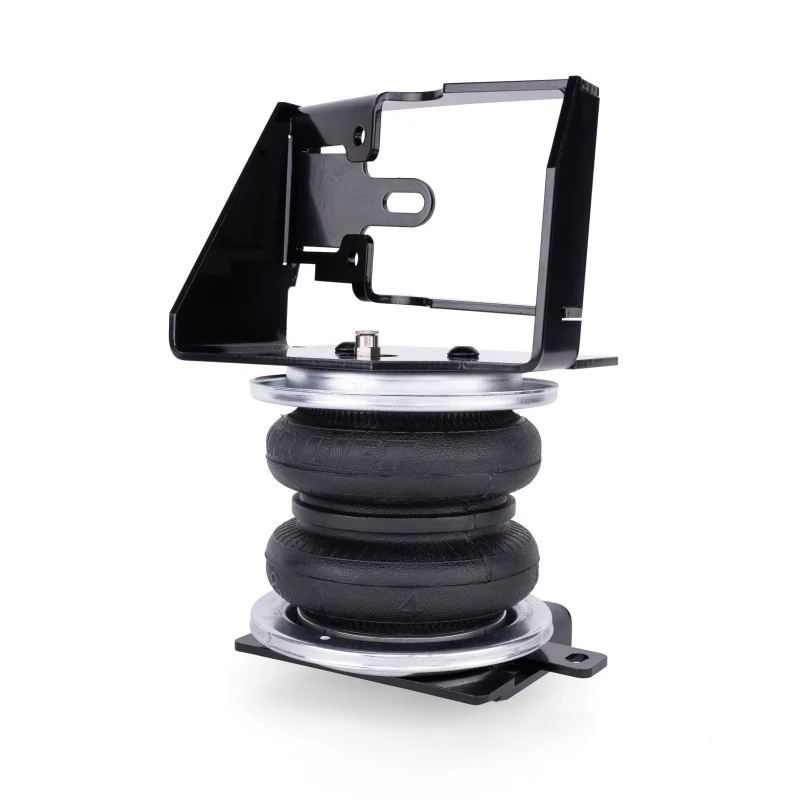

2023+ Sequoia Air Lift LoadLifter 5000 Rear Air Spring Kit 4WD
Rear air spring kit for the 2023+ Toyota Sequoia (3rd Gen, 4WD). Provides up to 5,000 lbs of load-leveling capacity for towing, hauling, and constant rear loads. Bolt-on installation with no frame drilling required.
Important Fitment Information:
- Does NOT fit Sequoia TRD Pro models equipped with Fox rear remote reservoir shocks.
- Fits 4WD only — does not fit 2WD Sequoia configurations.
- If running a rear lift via add-a-leaf or lifted leaf pack, an airbag spacer may be required to prevent the bag from overextending. Lift blocks do not require a spacer.
Features
- 5,000 lb load-leveling capacity
- Air springs fully adjustable from 5–100 PSI for precise control
- 2-ply fabric construction with ultra-high-strength nylon composite end caps
- Roll plates protect the air springs from frame contact
- Frame drilling: No
- Limited Lifetime Warranty + 60-Day Ride Satisfaction Guarantee
Kit Contents (Part #57264)
- Two air springs
- Mounting brackets, air line, and fittings
- All required mounting hardware
- Schrader inflation valves (manual inflation — on-board compressor sold separately)
- Installation instructions
Replacement air spring: Air Lift PN 50364
Specifications
| Part Number | 57264 |
| Weight | 25.4 lb |
| Width | 14.125 in |
| Depth | 9.25 in |
| Height | 10.75 in |
| Replacement Air Spring | 50364 |
| Drilling Required | No |
| Application Type | Rear Kit |
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2023-2026 | Toyota | Sequoia | SR5 |
| 2023-2026 | Toyota | Sequoia | Limited |
| 2023-2026 | Toyota | Sequoia | Platinum |
| 2023-2026 | Toyota | Sequoia | Capstone |
| 2025-2026 | Toyota | Sequoia | 1794 Edition |
Installation
Download the manufacturer install guide: Air Lift Installation Manual (PDF).
