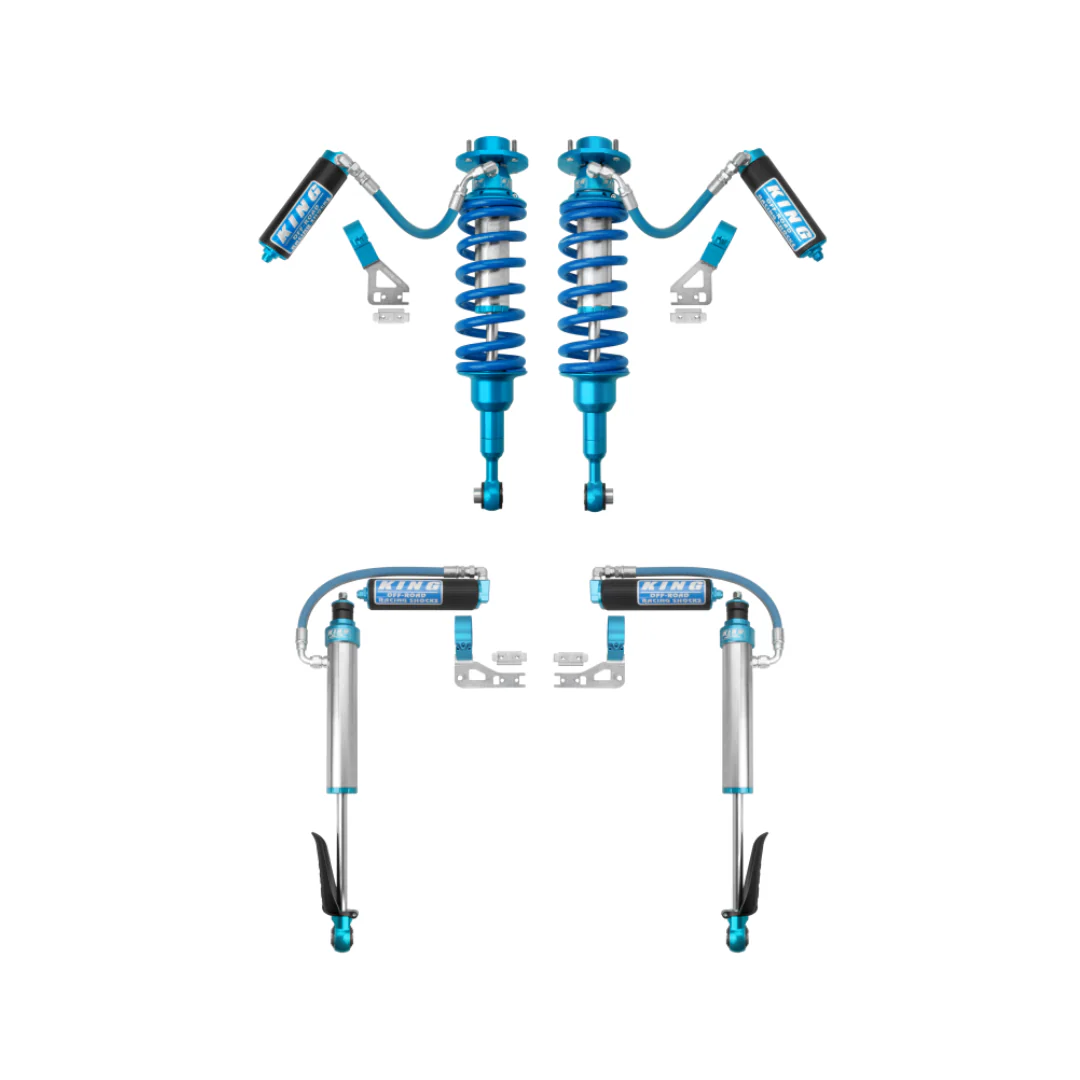

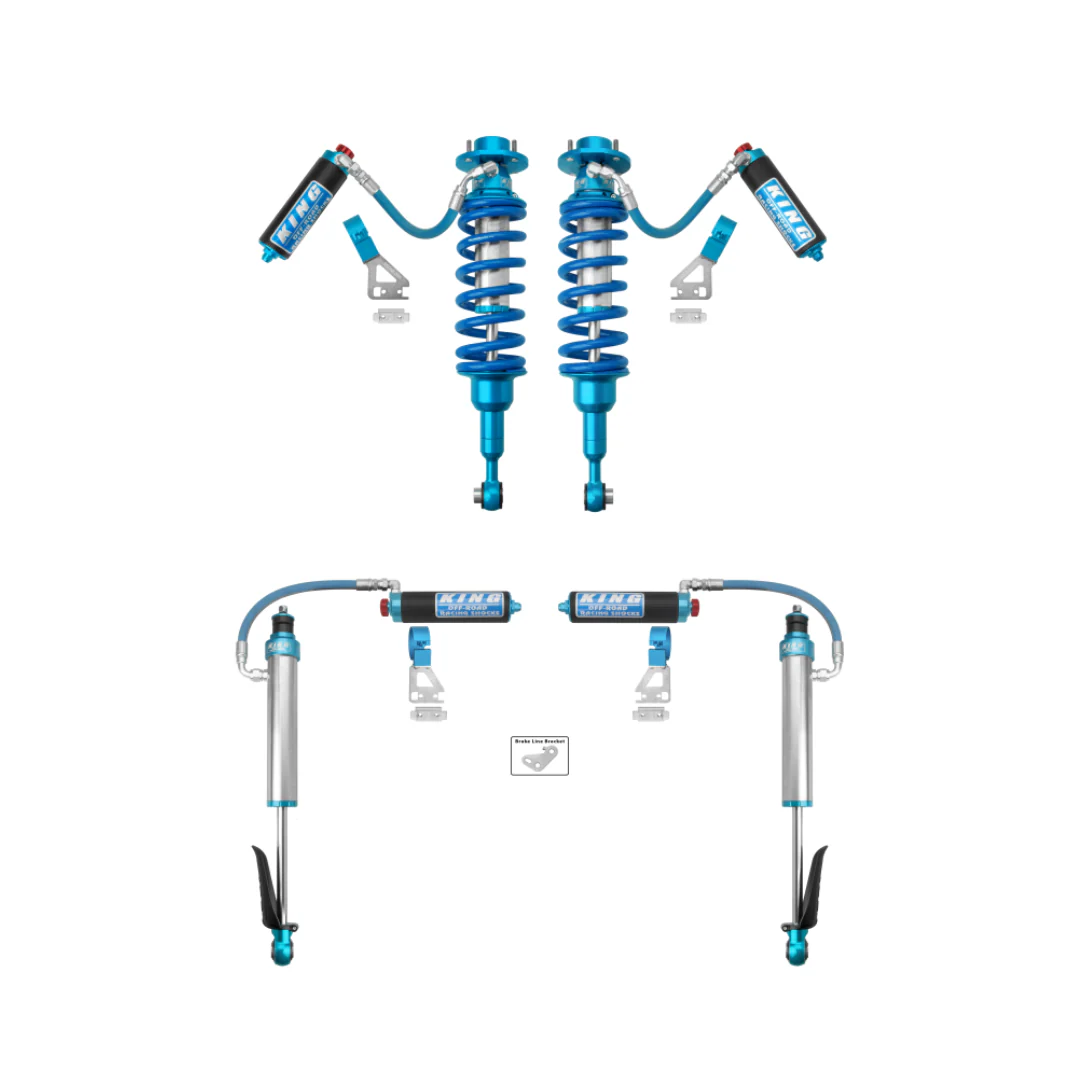

King OEM performance kit custom tuned to provide your Toyota with unparalleled levels of performance and ride quality. Each kit has been subjected to punishing real world testing to develop the optimal damping curve and spring rate for your vehicle. Easy bolt-on installation for stock height or custom kits for trucks running lifted aftermarket suspension.

Front Coilover Features:

• 100% bolt-on performance.
• Increased wheel travel!
• Adjustable ride height.
• Large 2.5” shock bodies increase fluid capacity for smoother, cooler running shocks.
• Factory tuned for optimal ride quality.
• Extensive dynamometer lab testing and punishing real world testing to develop the optimal damping curves and spring rates for your Toyota.
• Built from the same quality materials and to the same precise tolerances as King’s top of the line Pure Race series shocks.
• Fully rebuildable, serviceable and tunable.
• External reservoirs dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.
• All new threaded end cap design with new Schrader valve protective cap.
• Made from extruded 6061-T6 aluminum.
• New improved reservoir mounts. No more hose clamps!
• Optional Wide Range Compression Adjuster that gives 20 precise clicks of compression damping adjustment to further refine your ride quality.

Rear Shock Features:

• 100% bolt-on performance.
• Over 20% increase in wheel travel!
• New O.D. End Cap design with high strength stainless steel mounting pin.
• Large 2.5” shock bodies increase fluid capacity for smoother, cooler running shocks.
• Factory tuned for optimal ride quality.
• Extensive dynamometer lab testing and punishing real world testing to develop the optimal damping curves and spring rates for your Toyota.
• Built from the same quality materials and to the same precise tolerances as King’s top of the line Pure Race series shocks.
• Fully rebuildable, serviceable and tunable.
• External reservoirs dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.
• All new threaded end cap design with new Schrader valve protective cap.
• Made from extruded 6061-T6 aluminum.
• New improved reservoir mounts. No more hose clamps!
• Optional Wide Range Compression Adjuster that gives 20 precise clicks of compression damping adjustment to further refine your ride quality.

Rear Spring Options:

• C59-869V (30mm - 1.25") Stock Load / (Stock Height) 50-100lbs
• C59-817V (55mm - 2.25") 50-100lb Load / (30mm - 1.25") 175-330lb Load
• C59-819V (55mm - 2.25") 175- 330lb Load / (30mm - 1.25") 440-660lb Load
• C59-821V (55mm - 2.25") 440-660lb Load / (30mm - 1.25") 880-1210lb Load
