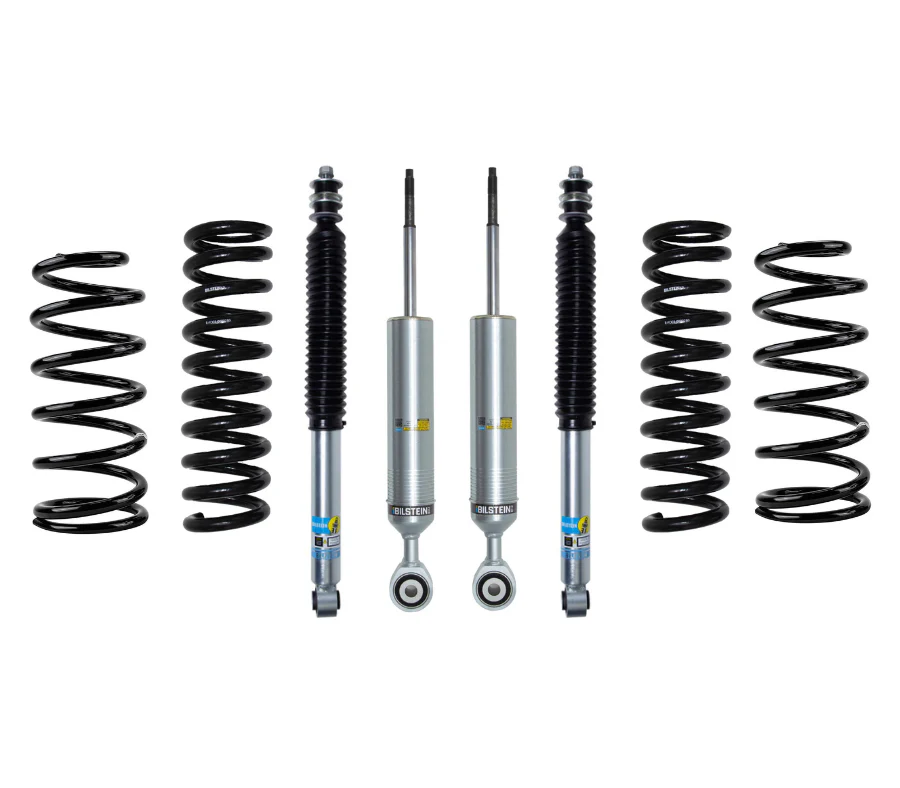

Includes:

• Bilstein 6112 3rd Gen Tundra Adjustable Struts & Springs
• Bilstein 5100 3rd Gen Tundra Rear Shocks
• Dobinsons rear springs (optional)

Rear shocks:

Both fit vehicles with 0–1" of rear lift without rear air suspension. The HD is built for trucks running ~500 lbs of constant rear load.

• Bilstein 5100 Rear Shocks [24-329217]
• Bilstein 5100 Rear Shocks HD [24-332903]

Rear springs:

• C59-835V stock height 0-110lb Load
• C59-837V stock height 220-440lb Load
• C59-839V stock height 550-770lb Load
• C59-841V (25mm-1") 0-110Lb Load
• C59-843V (25mm-1") 220-440lb Load
• C59-845V (25mm-1") 550-770lb Load
• C97-147VT (25mm-1") 800-1000lb Load
• C97-145VT (25mm-1") 1100-1300lb Load

Notes:

• Kits come unassembled unless an assembly option selected. You can reuse your stock tophat and stem bushing/washers for installation on unassembled kits.
• All lift figures are based on lift averages, your exact setup may vary. We have no control over the total height the lift achieves on your specific vehicle.
• 2WD lift heights may vary from estimated heights as the front end is lighter.
• If doing a 2.5" lift or higher in the front, a diff-drop kit or longer TRD CV-axles are REQUIRED. Failure to complete these requirements could cause OE CV-axle failure. 14mm bump stop extensions are also required.
