Complete front and rear suspension package for the 2000-2006 Toyota Tundra (1st Gen), built around ADS Racing Shocks Direct Fit Race Series components. Fits Regular Cab, Access Cab, and Double Cab configurations across Base, SR5, and Limited trims.

Front Coilovers
ADS 2.5" Direct Fit Race Coilovers with remote reservoirs — extended travel, hard chrome shaft, zinc-plated body. Ships with 700 lb springs. Optional upgrade to adjustable clicker reservoirs for on-the-fly compression tuning.

Front Lift: 1.5-3.0" depending on front-end load

Rear Shocks

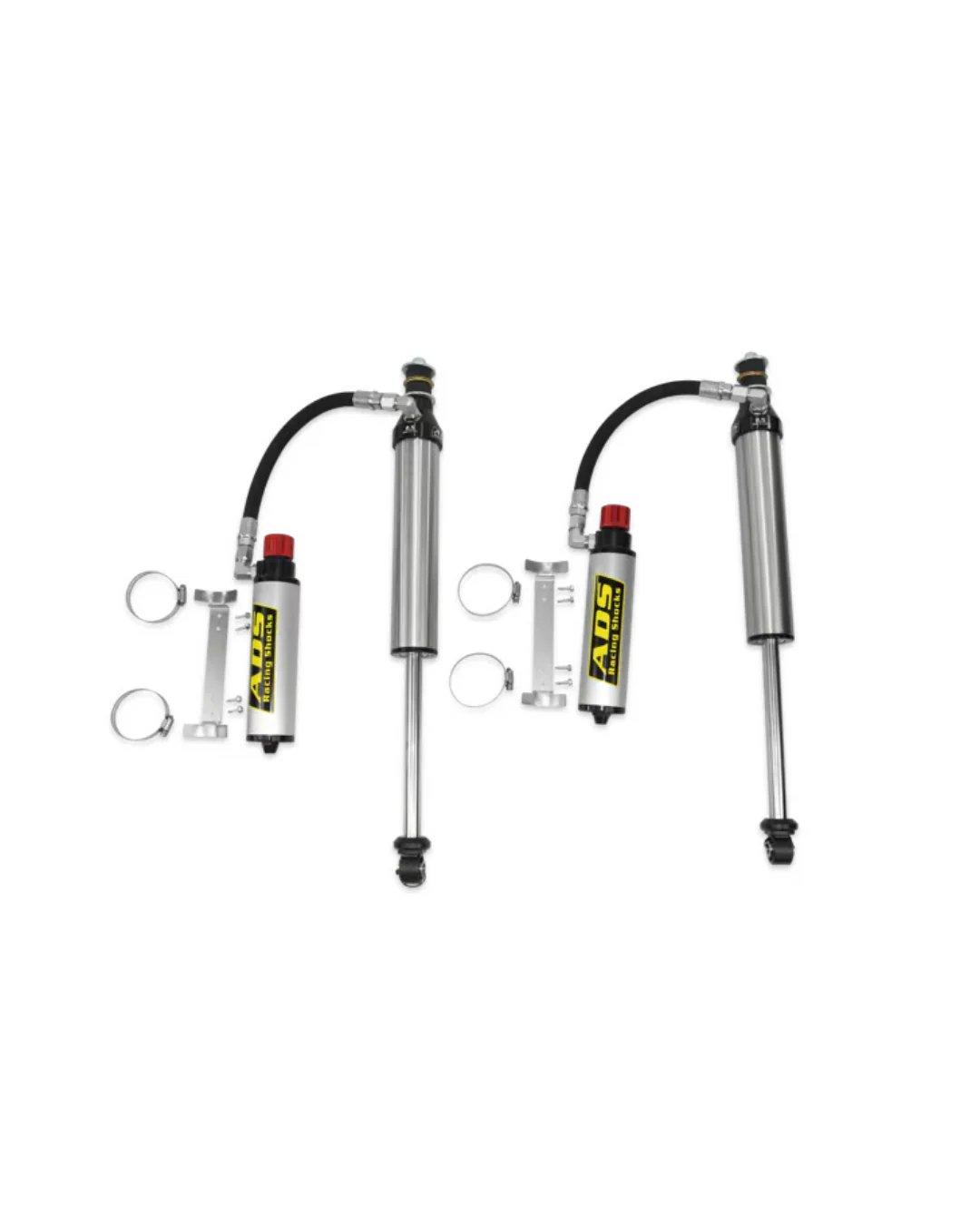

ADS 2.5" x 10" stroke Direct Fit Race Shocks with piggyback reservoirs. Valved for use with factory rear leaf springs. Optional upgrade to 2.5" x 9.5" clicker reservoir shocks for customizable damping.

Rear Leaf Springs

• Icon Add-A-Leaf — 1.5" lift, stock load

What's Included

• (2) ADS front coilovers with 700 lb springs, assembled
• (2) ADS rear piggyback shocks
• Icon add-a-leaf pack

Install Notes

• Aftermarket upper control arms required — factory UCAs will bind at full droop with 2"+ of lift.
• Rear shocks are valved for 2-3" rear lift with factory leaf springs plus the included AAL.
• Alignment required after install.
• Lift heights assume stock wheel/tire combos; measured lift varies with vehicle weight and accessories.
• Assembled in the USA by ADS Racing Shocks.
